AB Series – Compressed Air

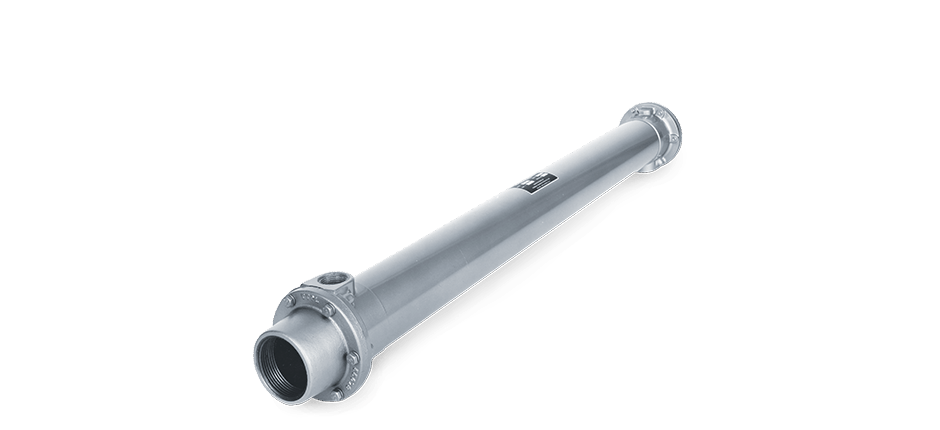

Thermal Transfer Products Compressed Air Aftercoolers

API Heat Transfer’s line of Thermal Transfer Products compressed air aftercoolers is a complete series of standard catalog air-to-air and water-to-air aftercoolers for compressed air and lube oil cooling. All Thermal Transfer Products aftercoolers are available with a wide variety of standard options to best suit each application.

Water-Cooled

  • In-Line shell and tube
  • Up to 5000-cfm capacity
  • Large range of standard sizes
  • Low approach temperatures
  • Copper, copper-nickel, or stainless steel tubing

Air-Cooled

  • Belt Guard or fan-cooled units
  • Up to 5000-cfm capacity
  • Large range of standard sizes
  • AC, hydraulic, or air-motor fan drives
  • Copper tube aluminum fin
  • Brazed aluminum (P-BAR)
  • Heresite coating for offshore or corrosive environment operation

Customer Focused and Driven

  • All catalog products are available with short lead-times
  • Expert application engineers available to select and size the right product for your application
  • Custom designs are available

For application help and quoting, visit our Full TTP site or contact ttpsales@apiheattransfer.com.

Contact Us/Request a Quote

Applications

  • Compressors
  • Industrial Markets
RatingsMaximum Operating Pressure - Tubes 250 PSI
Maximum Operating Pressure - Shell 250 PSI
Maximum Operating Temperature 350°F
MaterialsTubes - Copper
Shell - Brass
End Hubs - Brass
End Bonnets - Cast iron
Baffles - Brass
Gaskets - Nitrile rubber
Nameplate - Aluminum foil
Mounting Brackets (optional) - Steel
