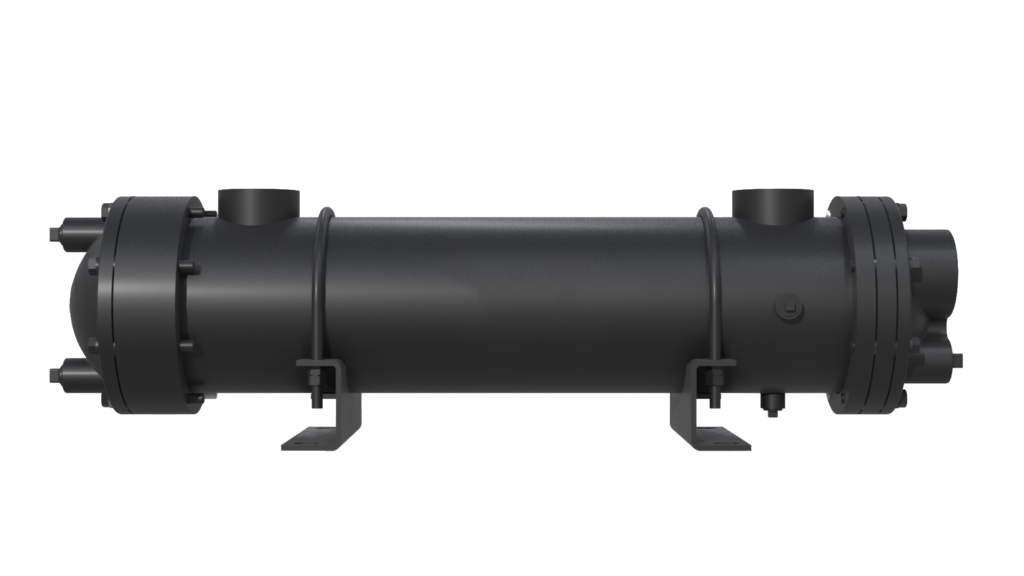

HCR Series

REMOVABLE Bare Tube Bundle Shell & Tube Water to Oil Cooling

Contact Us/Request a Quote

Performance Notes

The HCR Series is a unique design allowing the tube bundle to be removed for cleaning or exchange while the shell remains mounted and shell connections remain undisturbed. By only replacing the tube bundle portion of the cooler it will cut down on labor and saving on cost of replacing a complete cooler allowing for quicker pay-back.

Ideal for hydraulic oil or compressed air-cooling applications. It will become the new industry standard in ultimate value and long-term reliability.

Features:

  • Interchangeable with TTP HC Series
  • Rugged steel construction
  • Low cost
  • End bonnets removable for servicing
  • Mounting feet included (may be rotated in 90° increments)

Customer Focused and Driven:

  • All catalog product is available with short lead-times
  • Expert application engineers are available to select and size the right product for your application
  • Custom designs are available

For application help and quoting, visit our Full TTP site or contact ttpsales@apiheattransfer.com.

  • Maximum Operating Pressure – Shell Side 300 PSI*
  • Maximum Operating Pressure – Tube Side 150 PSI
  • Maximum Operating Temperature 300°F
  • Heat Rejection from 6 HP to 270 HP (4.5 kW to 360 kW)
  • Oil Flow from 5 to 210 GPM (11 LPM to 460 LPM)
  • Tubes – Copper
  • Tubesheet – Carbon Steel
  • Shell – Carbon Steel
  • Baffles – Carbon Steel
  • End Bonnets – Cast Iron
  • Mounting Brackets – Carbon Steel
  • Gaskets – Nitrile Rubber/Cellulose Fiber
  • Nameplate – Aluminum Foil
