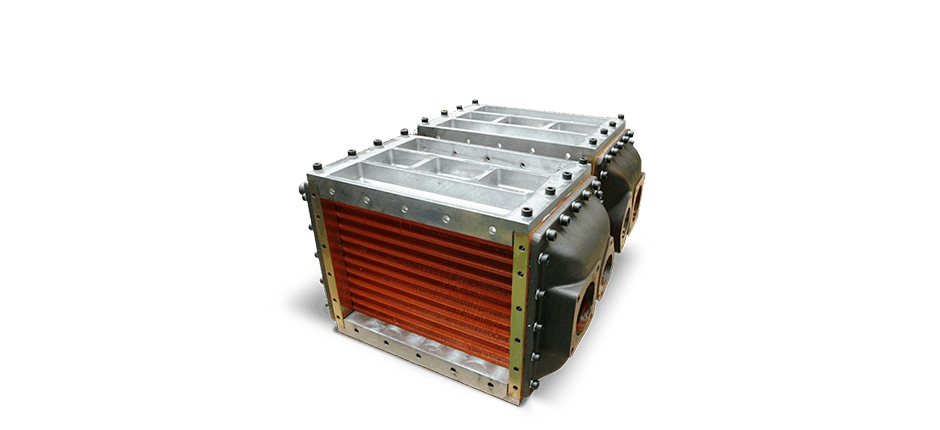

Water Cooled Charge Air Coolers

Custom designed in round shell and tube, or square engine and remote mounted fin designs, our high performance water cooled charge air coolers utilize extended surface cooling fins in either aluminium, copper, or stainless steel to ensure greater thermal effectiveness and durability. This means our customers receive superior performance at a practical price. For over 100 years, our heat exchangers have been trusted among equipment manufacturers in the transportation, power generation, construction, military and process industries.

Performance Notes

High thermal efficiency of copper fin design enables us to supply a reduced overall package size for advanced performance in all conditions and environments
Design and material flexibility
High performance: compact and cost-effective
Custom designed to suit individual application and performance requirements

Applications

Industrial Equipment
Construction
Military
Power Generation
Process Industries

Technology
Single Shot Expansion or Manual/Multi Blow Expansion for tube to fin bond
Maximum Length
Single shot expansion: up to 2 meters, Manual/Multi Blow Expansion: 53.1 in (1350 mm)
FPI
14, 16, 18, 20, 24, 26, 28, 30
Fins

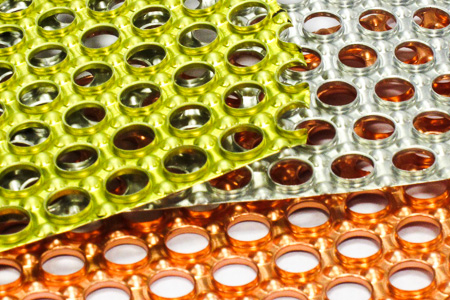

Plain, Dimpled, or Winglet; Copper, Aluminum, Epoxy Coated Aluminum, or Stainless Steel
Tubes
Copper Nickel 90/10 or 70/30, Stainless Steel
Design Codes
If required, designed to CE/Ped category I, II or III, ASME VIII Div. 1
