ES Shell and Tube Extended Surface Coolers

Basco® Type ES Extended Surface Shell and Tube Fin Heat Exchangers

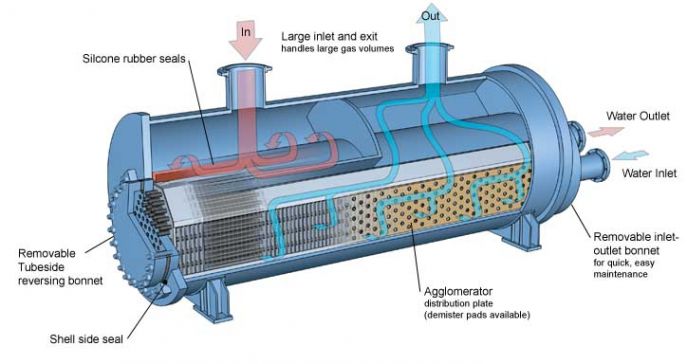

Our Type ES extended surface shell and tube fin heat exchanger is the industry leader for intercooler and aftercooler performance. Its unique patented compact plate fin design provides superior cooling of large air volumes at low pressure drops which means less energy consumption.

Contact Us/Request a Quote

Performance Notes

  • Compact package delivers max heat transfer in a minimum space
  • Tubes are continuously supported over the entire length by the plate fins, providing a vibration-free design
  • Continuous silicone rubber seals at the top and bottom of the tube bundle prevent any mixing of inlet and outlet gas
  • Integrated moisture separation removes need for an external device
  • Tubes are easily accessed for inspection and cleaning
  • Type HF heat exchangers are also available and feature high fin tubes, more tube diameter and material options, and higher shell-side operating pressures


  • Compressors
  • Industrial Markets
  • Process Industries
  • Air separation
  • Data Centers
  • Air Cooled
  • Direct-to-Chip
Sizes20" to 120" diameter; 3' to 35' length
ShellsCarbon Steel or 304 Stainless Steel
Tubes3/8" or 5/8" diameter tubes available Carbon Steel, 304 Stainless Steel, Admiralty, 90/10 copper-nickel. 70/30 copper-nickel, or per customer specification.
FinsAluminum, Coated Aluminum, or Copper. Variations in fin spacing from 8 to 20 fins per inch
FlowAvailable in 2 or 4 pass designs typically, or any even number of passes.
CodesASME, TEMA-C, B and R, PED.Chinese CML, Korean KFR
