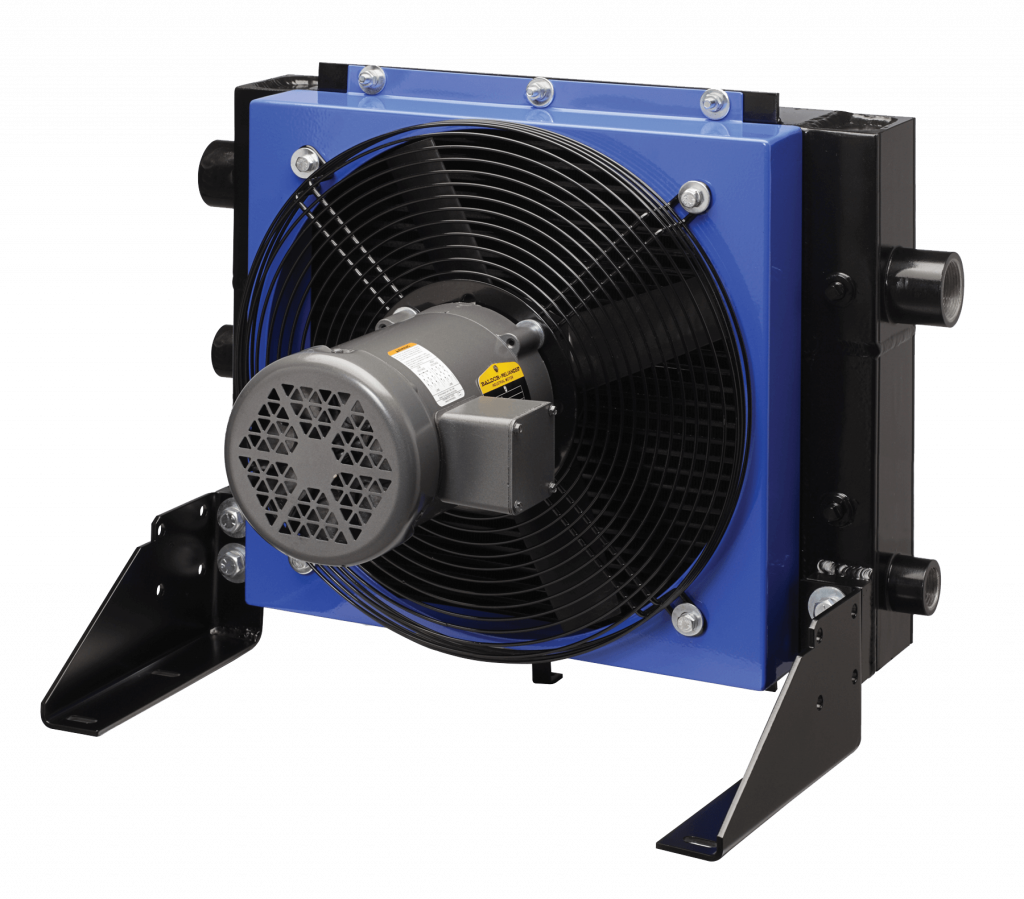

THERMAL TRANSFER PRODUCTS COMPRESSED AIR AFTERCOOLERS
API Heat Transfer’s line of Thermal Transfer Products compressed air aftercoolers is a complete series of standard catalog air-to-air and water-to-air aftercoolers for compressed air and lube oil cooling. All Thermal Transfer Products aftercoolers are available with a wide variety of standard options to best suit each application.
Compressed Air Aftercoolers Product Highlights
- Combination welded cores – air & oil core
- Brazed aluminum core/bar and plate
- Excellent for field conversions
- Vertical air flow
- Compact design
- Light weight
- Compact, high performance all aluminum core assembly
- Designed specifically for rotary screw compressors
- Ideal for converting water cooled units to air cooled
- Eliminates high water and sewer costs
- Eliminates corrosion problems associated with water cooled units
- Excellent for heat recovery
- State-of-the-art heat transfer technology
- Detachable legs on ACOC (shipped unattached). Fixed mounting feet on ACOCH
- CRN available
Customer Focused and Driven
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- Custom designs are available
For application help and quoting, visit our Full TTP site or contact ttpsales@apiheattransfer.com.
Contact Us/Request a Quote
| Ratings | Maximum Operating Pressure 250 PSI
Maximum Operating Temperature 350°F |
| Materials | Legs - Steel with baked enamel finish
Shroud - Steel
Core - Brazed aluminum bar and plate
Fan - Aluminum hub, plastic blades
Motor - TEFC |
